HANDLEBAR MOUNT TPMS

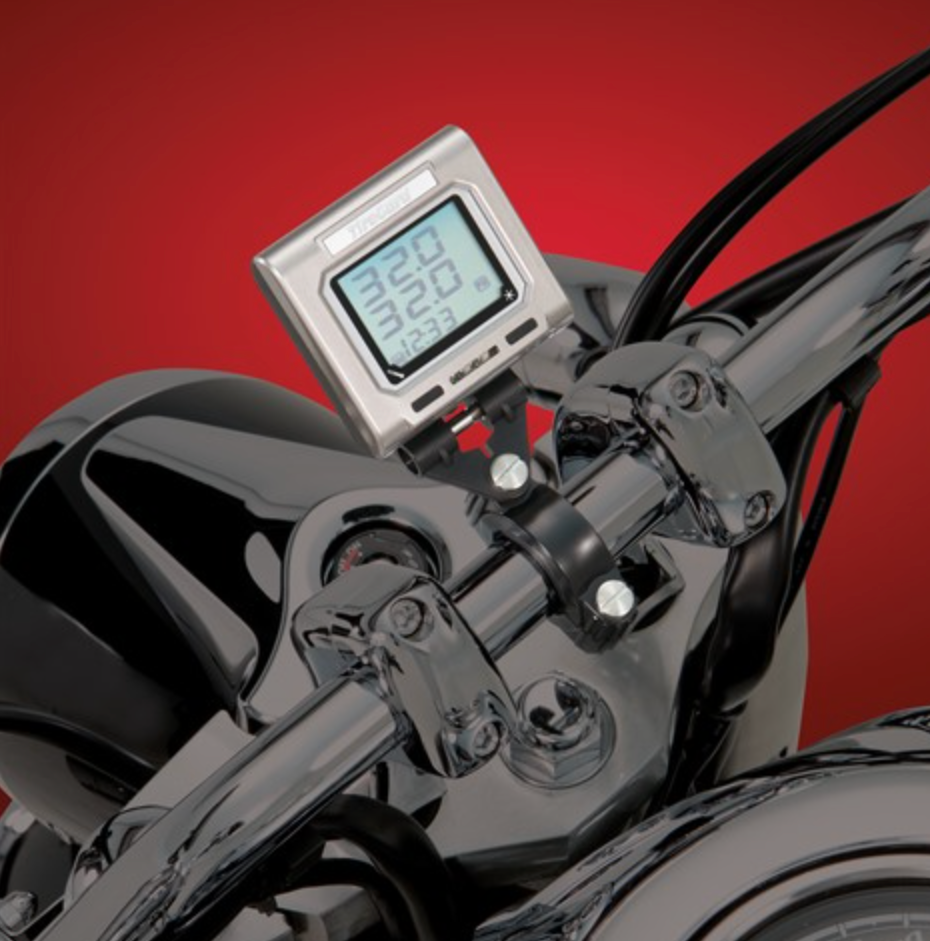

This Handlebar Mount Tire Pressure Monitoring system design incorporates a large 1⅝” x 1 ⅛” LCD display screen mounted in a slim 2-7/16” x 2 ⅝” x ¾” case. It easily mounts to round handlebars or can be face mounted to the brake cylinder face clamp. The handlebar clamp assembly will allow fitment on ⅞”, 1”, or 1⅛” handlebars. The monitor quickly slides into or out of the mount to allow quick removal and remounting. The lightweight, ⅓ ounce sensors feature the latest technology in external sensors on the market and are water resistant. Tire Pressure Monitoring Systems (TPMS) are a proven way to increase fuel efficiency and extend tire life.

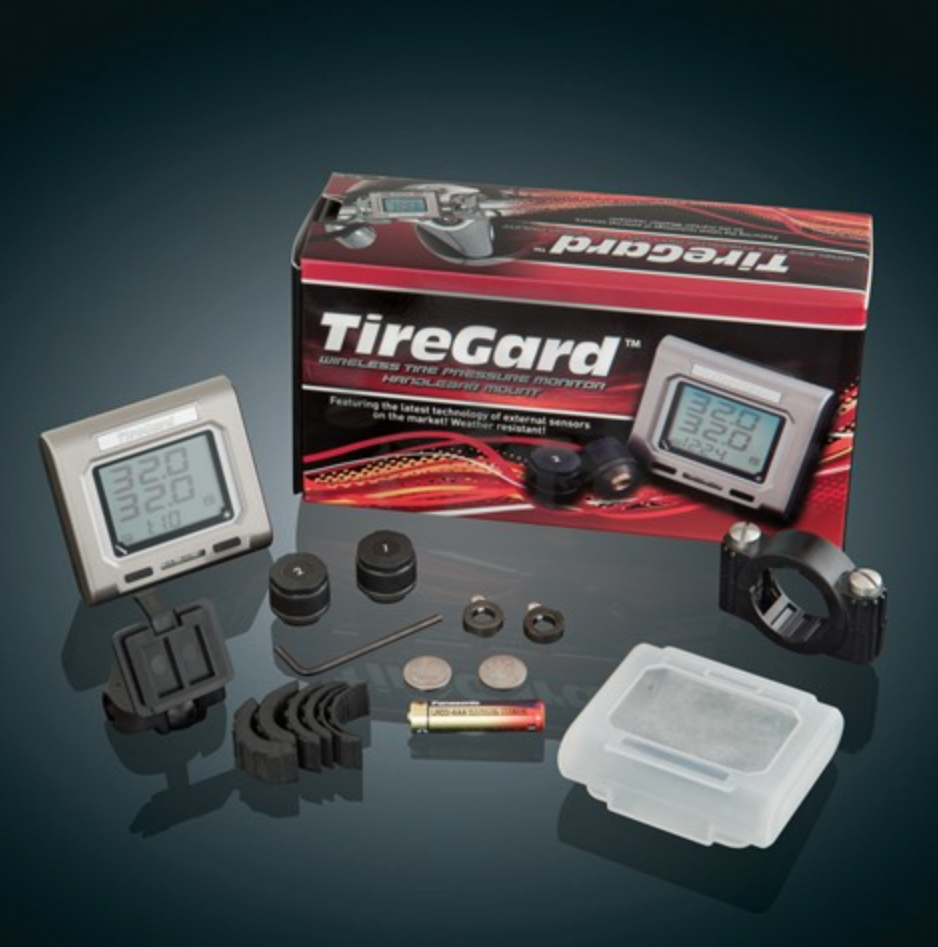

No tire rebalancing is needed and each sensor comes with a patented anti theft ring to not only prevent theft, but loss from improper installation. The sensors have a unique 20 minute battery saver mode as well as G-Force sensing to wake them up. The monitor comes with its own one hour battery saver mode to insure long life on all components. Includes instruction manual, all batteries, and a silicone protective skin for the monitor.

Sensors will work with all valve stems – However, rubber 90° valve stems do not last as long as metal and depending on  the age and quality of your rubber 90° valve stem you need to make sure they are in good shape. We do recommend the use of metal valve stems for better durability. Please verify clearance when used with a 90 degree valvestem ( Softail, etc.)  to clear any and all calipers or other components before use.

         FITMENT:

• Honda GL1500C Valkyrie Standard 1997, 1998, 1999, 2000, 2001, 2002, 2003
• Honda GL1500CJ Valkyrie Interstate 1999, 2000, 2001
• Honda GL1500CT Valkyrie Tourer 1997, 1998, 1999, 2000, 2001
• Honda GL1800C Valkyrie F6C 2014, 2015
• Honda GL1500A Gold Wing Aspencade 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
• Honda GL1800 Gold Wing 2001, 2002, 2003, 2004, 2005
• Honda GL1800P Premium Audio 2006, 2007, 2008, 2009, 2010, 2012, 2013, 2014, 2015, 2016, 2017
• Honda GL1800HPN Premium Audio 2006, 2007, 2008, 2009, 2010, 2012, 2013, 2014, 2015, 2016, 2017
• Honda GL1800HPNA Premium Audio / Navi / Comfort / ABS 2006, 2007, 2008, 2009, 2010, 2012, 2013, 2014, 2015, 2016, 2017
• Honda GL1800B Gold Wing Airbag 2006, 2007, 2008, 2009, 2010, 2012, 2013, 2014, 2015, 2016, 2017
• Honda GL1800B/B2 Gold Wing F6B 2013, 2014, 2015, 2016, 2017
• Honda GL1800B Gold Wing 2018, 2019, 2020, 2021, 2022
• Honda GL1800BD Gold Wing DCT 2018, 2019, 2020, 2021
• Honda GL1800 Gold Wing Tour 2018, 2019, 2020, 2021, 2022, 2023
• Honda GL1800D Gold Wing Tour DCT 2018, 2019, 2020, 2021, 2022, 2023
• Honda GL1800DA Gold Wing Tour DCT Airbag 2018, 2019, 2020, 2021, 2022, 2023
• Honda VTX1300C Custom 2004, 2005, 2006, 2007, 2008, 2009
• Honda VTX1300R Retro 2005, 2006, 2007, 2008, 2009
• Honda VTX1300T Touring 2008, 2009
• Honda VTX1800C Standard 2002, 2003, 2004, 2005, 2006, 2007
• Honda VTX1800F Performance 2005, 2006, 2007, 2008
• Honda VTX1800N Neo-Retro 2004, 2005, 2006, 2007, 2008
• Honda VTX1800R Retro 2002, 2003, 2004, 2005, 2006, 2007
• Honda VTX1800S Retro (Spokes) 2002, 2003, 2004, 2005, 2006, 2007
• Honda VTX1800T Tourer 2007, 2008
• Honda VTX1300S Retro (Spokes) 2003, 2004, 2005, 2006, 2007
• Honda VT1100C Shadow 1995, 1996
• Honda VT1100C Shadow Spirit 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
• Honda VT1100C2 Shadow Sabre 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
• Honda VT1100C3 Shadow Aero 1998, 1999, 2000, 2001, 2002, 2003
• Honda VT1100T Shadow ACE Tourer 1998, 1999, 2000, 2001
• Honda VT600C Shadow VLX 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• Honda VT750C Shadow ACE 1997, 1998, 1999, 2000, 2001
• Honda VT750C Shadow Aero 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Honda VT750C2 Shadow Spirit 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
• Honda VT750C2B Shadow Phantom 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Honda VT750CD Shadow ACE Deluxe 1997, 1998, 1999, 2000, 2001, 2002, 2003
• Honda VT750DC Shadow Spirit 2001, 2002, 2003, 2005, 2006, 2007
• Honda VT750RS Shadow Retro 2010, 2011, 2012, 2013
• Honda GL1500 Gold Wing 1988, 1989, 1990
• Honda GL1500SE Gold Wing SE 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
• Honda GL1500I Gold Wing Interstate 1991, 1992, 1993, 1994, 1995, 1996
• Kawasaki VN900C Custom 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Kawasaki VN900B Classic 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Kawasaki VN1700 Classic 2009, 2010, 2011, 2012, 2013
• Kawasaki VN1700 Nomad 2009, 2010, 2011, 2012, 2013, 2014
• Kawasaki VN1700 Vaquero 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Kawasaki VN1700 Voyager 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Kawasaki VN1500 Classic 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• Kawasaki VN500 Vulcan 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
• Kawasaki VN750 Vulcan 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• Kawasaki VN800A Vulcan 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• Kawasaki VN800B Classic 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• Kawasaki VN800 Drifter 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• Kawasaki VN1500G Nomad 1999, 2000, 2001
• Kawasaki VN1500R Drifter 2001, 2002, 2003, 2004, 2005, 1999, 2000
• Kawasaki VN1500L Nomad 2000, 2001, 2002, 2003, 2004
• Kawasaki VN1500A Vulcan 1996, 1997, 1998, 1999
• Kawasaki VN1500P Mean Streak 2002, 2003
• Kawasaki VN1600 Classic 2003, 2004, 2005, 2006, 2007, 2008
• Kawasaki VN1600 Mean Streak 2004, 2005, 2006, 2007, 2008
• Kawasaki VN1600 Nomad 2005, 2006, 2007, 2008
• Kawasaki VN2000 Vulcan 2004, 2005, 2006, 2007, 2008, 2009
• Kawasaki VN2000 Classic 2006, 2007, 2008, 2009, 2010, 2004, 2005
• Kawasaki VN900D Classic LT 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Kawasaki VN2000 Classic LT 2006, 2007, 2008, 2009, 2010
• Suzuki Savage LS650 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
• Suzuki Boulevard S40 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020
• Suzuki Intruder VS800 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
• Suzuki Boulevard S50 2005, 2006, 2007, 2008, 2009
• Suzuki Intruder VS1400 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
• Suzuki Boulevard S83 2005, 2006, 2007, 2008, 2009
• Suzuki Volusia VL800 2001, 2002, 2003, 2004
• Suzuki Boulevard C50 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Suzuki Intruder VL1500 1998, 1999, 2000, 2001, 2002, 2003, 2004
• Suzuki Boulevard C90 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
• Suzuki Marauder VZ800 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
• Suzuki Boulevard M50 2005, 2006, 2007, 2008, 2009
• Suzuki Marauder VZ1600 2004
• Suzuki Boulevard M95 2005
• Suzuki Boulevard M109R 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
• Suzuki Boulevard C109R 2008, 2009, 2010, 2011, 2012, 2013
• Yamaha Road Star XV1600 1999, 2000, 2001, 2002, 2003
• Yamaha Royal Star Venture XVZ1300 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
• Yamaha Royal Star XVZ1300 1996, 1997, 1998, 1999, 2000, 2001
• Yamaha Royal Star Tour Deluxe XVZ1300 1997, 1998, 1999, 2000, 2001
• Yamaha Road Star XV1700 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
• Yamaha Venture Royale XVZ1300 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
• Yamaha V-Star XVS650A Classic 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
• Yamaha V-Star XVS650 Custom 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
• Yamaha V-Star XVS950 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
• Yamaha V-Star XVS1100A Classic 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011
• Yamaha V-Star XVS1100 Custom 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 1999
• Yamaha V-Star XVS1300 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
• Yamaha Road Star Warrior XV1700 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
• Yamaha Roadliner XV1900 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
• Yamaha Star Venture XV19 2018, 2019, 2020, 2021, 2022
• Yamaha Stratoliner XV1900 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
• Honda VT1300CX Fury 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
• Honda VT1300CR Stateline 2010, 2011, 2012, 2013, 2014, 2015, 2016
• Honda VT1300CT Interstate 2010, 2011, 2012, 2013, 2014, 2015
• Honda VT1300CS Sabre 2010, 2011, 2012, 2013, 2014
• Indian Scout 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Indian Chief 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Indian Chieftain 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Indian Roadmaster 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Indian Springfield 2016, 2017, 2018, 2019, 2020, 2021, 2022
• Victory V92C 1999, 2000, 2001, 2002, 2003
• Victory Octane 2017
• Victory Vegas 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
• Victory Kingpin 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
• Victory Jackpot 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
• Victory Highball 2012, 2013, 2014, 2015
• Victory Hammer 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
• Victory Gunner 2014, 2015
• Victory Boardwalk 2013, 2014
• Victory Judge 2013, 2014
• Victory Cross Roads 2010, 2011, 2012, 2013, 2014
• Victory Hardball 2011, 2012, 2013
• Victory Magnum 2014, 2015
• Victory Cross Country Tour 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
• Victory Vision 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
